LLANTAS
MONTACARGAS
CERO TIEMPO PERDIDO
Las llantas sólidas eliminan los pinchazos y reducen el mantenimiento al mínimo. Ideal para turnos de 24 h en puertos, bodegas y plantas industriales.

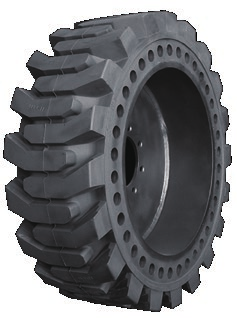

DH901 / SM-1
Cero tiempo de inactividad por pinchazos. Máxima capacidad de carga para montacargas en ciclos continuos.
| MODELO | TALLA | CARGA EST. MÁX. (KG) | Ø EXT. (MM) | ANCHO (MM) |
|---|---|---|---|---|
| DH901 | 4×2×4 | 600 | 368 | 100 |
| DH901 | 5.00-8 | 1,300 | 456 | 127 |
| DH901 | 6.00-9 | 1,700 | 524 | 152 |
| DH901 | 6.50-10 | 2,000 | 545 | 165 |
| DH901 | 7.00-12 | 2,500 | 619 | 178 |
| DH901 | 8.15-15 | 3,350 | 718 | 207 |
| DH901 | 28×9-15 | 4,100 | 711 | 229 |
| SM-1 | 250-15 | 5,500 | 762 | 254 |
| SM-1 | 275-15 | 6,200 | 800 | 279 |
| SM-1 | 300-15 | 7,200 | 838 | 305 |

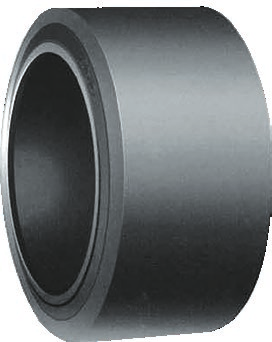

| Solid Ring — Prensado TR | ||||
| TR | 13.5×5.5×8 | 1,075 | 203 | 140 |
| TR | 15×5×11 1/4 | 995 | 286 | 127 |
| TR | 16 1/4×6×11 1/4 | 1,370 | 286 | 153 |
| TR | 16 1/4×8×11 1/4 | 1,935 | 286 | 203 |
| TR | 16×5×10 1/2 | 1,075 | 267 | 127 |
| TR | 16×6×10 1/2 | 1,365 | 267 | 153 |
| TR | 18×6×12 1/8 | 1,500 | 308 | 153 |
| TR | 18×7×12 1/8 | 1,820 | 308 | 178 |
| TR | 18×8×12 1/8 | 2,145 | 308 | 203 |
| TR | 21×7×15 | 2,050 | 381 | 178 |
| TR | 21×9×15 | 2,785 | 381 | 229 |
| TR | 22×8×16 | 2,500 | 406 | 203 |
| TR | 22×9×16 | 2,880 | 406 | 229 |
| TR | 22×12×16 | 4,025 | 406 | 305 |
| TR | 28×10×22 | 3,910 | 559 | 254 |
| TR | 28×12×22 | 4,820 | 559 | 305 |
| TR | 28×16×22 | 6,645 | 559 | 406 |
Rudomática — Semi-Solid
Llanta semi-sólida de absorción de impactos. Combina la durabilidad de la sólida con el amortiguamiento de la neumática.
| TALLA | BANDA | ANCHO (MM) | Ø EXT (MM) | TRACCIÓN (KG) | DIRECCIÓN (KG) | ESTÁTICA (KG) | PESO (KG) |
|---|---|---|---|---|---|---|---|
| 15×4 1/2-9 | N/B | 134 | 384 | 1,170 | 900 | 1,360 | 12 |
| 16×6-8 | N/B | 155 | 417 | 1,495 | 1,150 | 1,735 | 16 |
| 18×7-8 | N/B | 152 | 457 | 2,145 | 1,650 | 2,490 | 24 |
| 21×8-9 | N/B | 190 | 530 | 2,755 | 2,120 | 3,200 | 37 |
| 23×9-10 | N/B | 204 | 593 | 3,445 | 2,650 | 4,000 | 52 |
| 23×10-12 | N/B | 235 | 596 | 3,160 | 2,430 | — | 53 |
| 27×10-12 | N/B | 248 | 690 | 3,900 | 3,000 | 4,530 | 73 |
| 28×12.50-15 | N/B | 300 | 706 | 5,260 | 4,960 | — | 88 |
| 200/50-10 | N/B | 199 | 463 | 2,470 | 1,900 | 2,870 | 26 |
| 2.50-15 | N/B | 228 | 728 | 4,725 | 3,650 | 5,510 | 66 |
| 5.00-8 | N/B | 130 | 460 | 1,415 | 1,090 | 1,645 | 18 |
| 6.00-9 | N/B | 155 | 529 | 1,885 | 1,450 | 2,190 | 26 |
| 6.50-10 | N/B | 165 | 578 | 2,340 | 1,800 | 2,720 | 37 |
| 7.00-12 | N/B | 174 | 659 | 2,920 | 2,240 | 3,380 | 50 |
| 28×9-15 | N/B | 223 | 695 | 3,770 | 2,900 | 4,380 | 62 |
| 8.25-15 | N/B | 215 | 828 | 4,600 | 3,540 | 5,345 | 87 |
| 300-15 | N/B | 259 | 830 | 5,850 | 4,500 | 6,795 | 124 |
| 9.00-20 | NEGRA | 228 | 989 | 5,400 | 4,500 | 6,795 | 152 |
| 10.00-20 | NEGRA | 272 | 1,052 | 6,200 | 5,165 | — | 188 |
| 12.00-20 | NEGRA | 292 | 1,105 | 7,560 | 6,300 | — | 227 |
| 31×10×16 | NEGRA | 236 | 743 | 3,420 | 2,376 | — | 74 |
| 33×12×20 | NEGRA | 274 | 837 | 3,530 | 3,187 | — | 97 |
| 36×14×20 | NEGRA | 325 | 915 | — | — | — | 150 |
Neumática — Forklift
Llanta neumática para montacargas en superficies irregulares. Máxima amortiguación y confort operativo en exteriores, patios y rampas.
| TALLA | PR | PROF. (MM) | RIN | Ø EXT (MM) | ANCHO (MM) | CARGA MÁX (KG) | PRESIÓN (KPA) | PESO (KG) |
|---|---|---|---|---|---|---|---|---|
| 5.00-8 | 10 | 10 | 3.5 | 470 | 137 | 1,295 | 900 | 6.3 |
| 6.00-9 | 10 | 13 | 4 | 540 | 160 | 1,795 | 850 | 10 |
| 6.50-10 | 10 | 16 | 5 | 590 | 175 | 1,965 | 775 | 12 |
| 7.00-12 | 14 | 14 | 5 | 683 | 192 | 2,670 | 1,000 | 18 |
| 8.15-15 (28×9-15) | 14 | 17 | 7 | 710 | 220 | 3,285 | 800 | 24 |
| 8.25-15 | 14 | 16 | 6.5 | 847 | 236 | 3,830 | 830 | 27 |
| 3.00-15 | 20 | 21 | 8 | 840 | 300 | 6,825 | 900 | 42 |
| 10.00-20 | 18 | 34 | 7.5 | 1,055 | 278 | 7,400 | 1,000 | — |
Rudomática OTR
Llantas semi-sólidas de gran tamaño para cargadores frontales, equipos portuarios y maquinaria pesada.
| TALLA | RIN | ANCHO (MM) | Ø EXT (MM) | TRACCIÓN (KG) | DIRECCIÓN (KG) | PESO (KG) |
|---|---|---|---|---|---|---|
| 14.00-24 | 10.00 | 350 | 1,342 | 10,315 | 8,595 | 410 |
| 17.5-25 | 14.00 | 412 | 1,320 | 15,420 | 11,890 | 465 |
| 20.5-17 | 17.00 | 470 | 1,400 | 13,320 | 12,587 | 750 |
| 23.5-25 | 19.50 | 554 | 1,556 | 27,520 | 20,620 | 970 |
| 26.5-22 | 22.00 | 629 | 1,680 | 35,400 | 26,600 | 1,450 |
| 29.5-25 | 29.00 | 690 | 1,830 | 35,400 | 26,600 | 1,700 |
